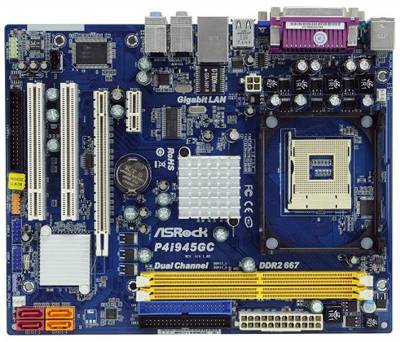

P4I945GC
SCHEDA MADRE ASROCK P4I945GC SK-478 FSB400-800 MHz AUDIO+LAN+VGA USB2.0 SATA II DDR 667-800
Ideale per rinnovare il vostro sistema informatico, la scheda madre ASRock P4i945GC č compatibile con i processori Pentium 4 e Celeron D. Inoltre, questa scheda P4i945GC č dotata di un chipset grafico integrato, grazie al quale potrete evitare di dover acquistare una scheda video supplementare.
CPU - Socket 478 for Intel® Pentium® 4 / Celeron® D (Prescott, Northwood) processors
- FSB 800/533/400 MHz
Memory - Dual Channel DDR2 memory technology
- 2 x DDR2 DIMM slots
- Supports DDR2 667/533/400 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*
Graphics - Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector by Intel® ICH7 (supports 2 x IDE devices)
- 1 x ATA133 IDE connector by VIA® VT6415 (supports 2 x IDE devices)
Rear Panel I/O ASRock 8CH I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
