G41C-S

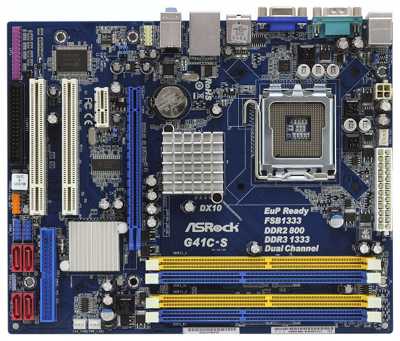

SCHEDA MADRE ASROCK G41C-S DDR2/DDR3 All in One per INTEL SK-775
La scheda madre ASRock G41C-S ha un socket 775 e un chipset Intel G41, supporta i processori Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium Dual Core, Celeron Dual Core, Celeron, Penryn Quad Core Yorkfield e Dual Core Wolfdale. Ha una scheda grafica Intel Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10. Supporta ASRock Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner, Intelligent Energy Saver. E dotata di 1 x PCI Express x16 slot, 4 connettori x SATAII 3.0 Gb / s, 10/100 Ethernet. Free Bundle : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial.
CPU - LGA 775 for Intel® CoreT 2 Extreme / CoreT 2 Quad / CoreT 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron®, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Supports FSB1333/1066/800/533 MHz
Memory - Dual Channel DDR3/DDR2 memory technology*
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**
- 2 x DDR2 DIMM slots
- Supports DDR2 800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB**
Graphics - Intel® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB*
Slots - 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
Connector - 4 x SATAII 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
|
